Semi Automatic MAP (Vacuum + Gas) Tray/Cup Sealing Machine
| Model No: | REMA-7878-MAP |
|---|---|
| Down Chamber Height: | 120mm |
| Film Max.Size (W X D): | 380 X 350 mm* (Can be customize) |

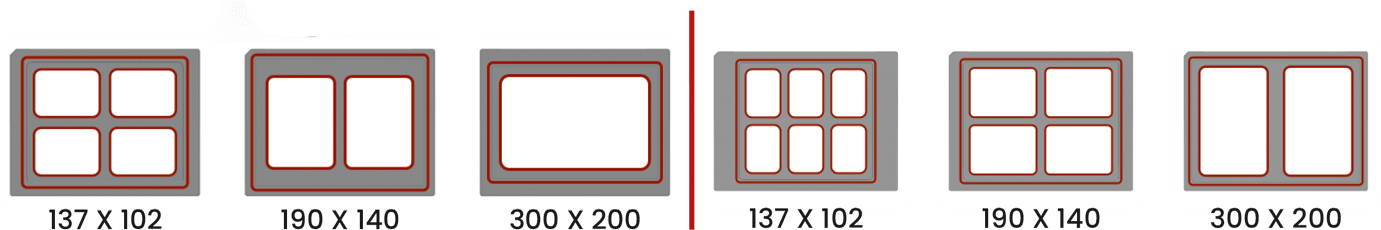

| No.of Tray Can Feed At a Time: | 250 Gram-4 Nos, 500 Gram - 2Nos & 1 KG – 2Nos. |
| Control Panel (PLC/HMI): | Make: Delta |
| Electric Supply: | 415-3Ph-50HZ, 3 KW |
| Vacuum Pump: | Make: Becker German |
| Vacuum Required: | 99.50% |
| Cycle Per Minute: | 2 to 3 Cycle |
| Operation on Tray: | Vacuum + Gas + Sealing + Cuting |
| Pneumatic Parts: | SMC or Janatics |
| Machine Construction: | Aluminum or Stainless Steel 304 |
| Machine Weight: | 250 KG |
| Machine Dim (L X W X H): | 1000 X 1030 X 1400 mm |
| Gas Flush: | Yes |
| Compressor Air Requirements: | 6-7 KG Pressure Require (In client scope) |
