Linear Type Automatic MAP (Vacuum + Gas) Tray Sealing Machine
| Model No: | REMA-7878-MAP-LINEAR |
|---|---|
| Maximum Tray Height: | 120 mm Can Customize it |
| Film Max. (W X D): | 670 mm X 350 mm* Can be customize |

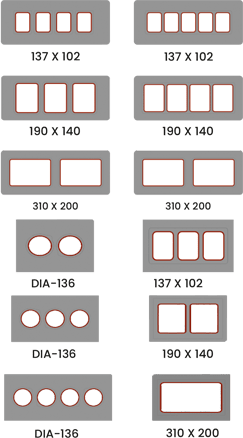

| No.of Trays Can Feed At a Time: | 250GM-5Nos, 500GM-4Nos, IKG-2Nos |
| Control Panel (PLC/HMI): | Make : Delta |
| Electric Supply: | 415V-3Phase-50 HZ, 7 KW |
| Vacuum Pump: | 100 m3/hr Becker German |
| Vacuum Required: | 99.50% |
| Cycles Per Minute: | 1 to 3 Cycle |
| Operation on Trays: | Vacuum + Gas + Sealing + Cutting |
| Pneumatic Parts: | SMC/JANATICS Make |
| Machine Construction: | Stainless Steel 304 |
| Machine Dim (L X W X H): | 3000 X 1250 X 1950 mm |
| Gas Flush: | Yes |
| Compressor Air Requirements: | 6-7 KG Pressure Require ( In client scope ) |
